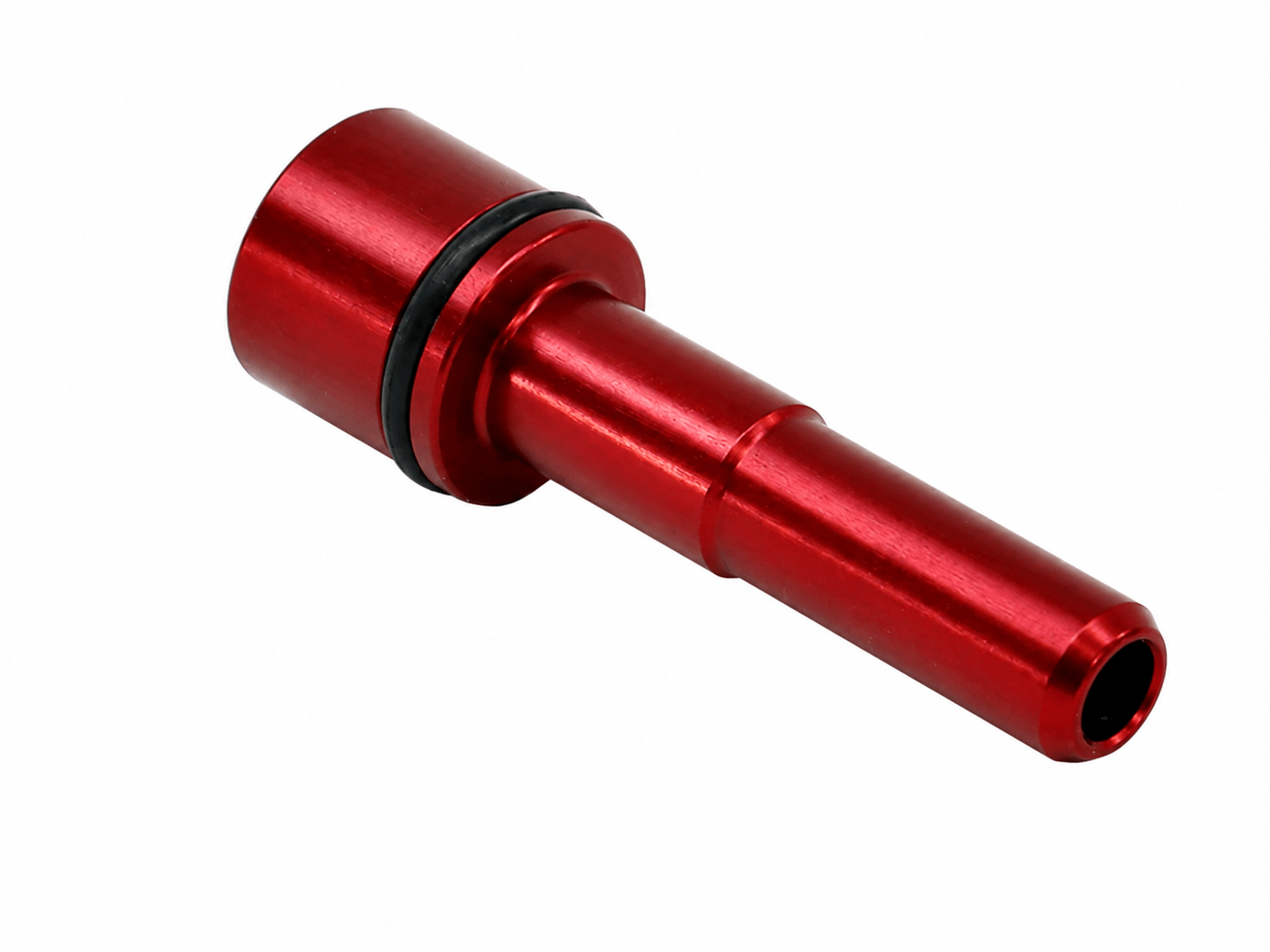

For cylinder conversion systems, PolarStar assigns numbers to nozzles instead of using the rifle model, since nozzle length varies between manufacturers of the same gun model. A standard MP5, for example, could require any of 4 different nozzle lengths depending on manufacturer.
Once you determine your replica's nozzle number, that number is universal across all engines using the numbered system (excluding some model-specific Kythera™ systems).
Formula for Custom Measurement
If your gun isn't in the compatibility database, measure your gearbox using calipers in thousandths of an inch (0.001") and calculate:
F2 Centerline Nozzles: TIP = F + B - (A/2) + .2925
The measured tip length should be within ±0.010" of an existing nozzle to be compatible. Contact us with your measurements for custom orders.
Compatibility Chart
| # | Most Commonly Used With | Tip (in) |
|---|---|---|
| 1 | TM M4/M16, A&K PKM, TM MP5 A/SD, ICS MP5 A/SD, G&G KAC SR-25E2 | 1.205 |
| 2 | CYMA AK, CYMA MP5 A/SD, G&G UMP | 1.242 |
| 3 | CA M249/MK46, A&K M249/MK46 | 1.19 |
| 4 | G&G GR-25 | 1.8305 |
| 5 | A&K SR-25, JG SR-25, ICS SIG 550/551/552 | 1.3435 |
| 6 | KA FAL, TM MP5K, A&K M240 | 1.2745 |
| 7 | PTS MASADA, CA SCAR-L | 1.514 |
| 8 | VFC SCAR-H | 1.8875 |
| 9 | EF/S&T TAR-21 COMP | 1.2565 |
| 10 | EF ARX160 ELITE | 1.866 |
| 11 | CA KAC LMG, VFC MP5 A/SD | 1.127 |
| 12 | LCT AK-47/74/M, LCT VSS/AS VAL | 1.2155 |
| 13 | A&K MASADA/ACR | 1.7265 |
| 14 | KA CZ 805 BREN, CG M249 FEATHERWEIGHT, A&K M60 | 1.769 |
| 15 | EF/ARES G36KV/CV, JG G36 | 1.434 |
| 16 | EF/S&T G36C | 1.421 |
| 17 | CA AUG | 1.384 |
| 18 | G&G MP5 A/SD | 1.175 |
| 19 | VFC/ECHO1 XCR | 1.6065 |
| 20 | CA G36, CYMA SR-25 | 1.406 |
| 21 | Elite Force/CYMA MP5K, CA SA58 | 1.303 |
For a full compatibility database, visit the PolarStar Help Center.
